High-End Thermographic Cameras Meet Highest Demands
Infratec's high-end cameras are designed for particularly demanding applications and, due to their characteristics, are tailored to users who require high-performance and flexibly configurable thermal imaging camera technology. Cooled photon detectors of different types, spectral sensitivity ranges and formats are used.
The high-end cameras of the ImageIR® series offer users outstanding performance data, including the highest thermal sensitivity, first-class geometrical and temporal resolution for precise measurements as well as high-speed modes to optimally image even extremely fast processes and moving objects. Due to a modular basic concept, individual system configuration and optimal adaptation of the performance data to the task are easily possible. For example, our ImageIR® cameras are used in research and development, in non-destructive analysis and in process monitoring.
In combination with the thermography control and analysis software IRBIS® developed by InfraTec, the cameras of the ImageIR® series set high standards as an efficient tool for complex thermographic analyses.
Detector Formats of the High-end Thermography Systems ImageIR®
| Detector format / MicroScan (IR pixels) | (1,920 × 1,536) | (1,280 × 720) / (2,560 × 1,440) | (1,280 × 1,024) / (2,560 × 2,048) | (1,280 × 1,024) | (640 × 512) / (1,280 × 1,024) | (640 × 512) | (320 × 240) |
| ImageIR® 10300 | ◼ | ||||||
| ImageIR® 9500 | ◼ | ||||||
| ImageIR® 9400 | ◼ | ◼ | |||||
| ImageIR® 9300 | ◼ | ◼ | |||||
| ImageIR® 8800 | ◼ | ◼ | |||||
| ImageIR® 8300 hp | ◼ | ◼ | |||||
| ImageIR® 8300 | ◼ | ||||||
| ImageIR® 7300 | ◼ | ||||||
| ImageIR® 5300 | ◼ | ||||||
| ImageIR® 4300 | ◼ |
Selected Features and Equipment
-
Thermal resolution better than 0.015 K
-
High-speed thermography with up to 105,000 Hz
-
FPA photon detectors with formats of (1,920 × 1,536), (1,280 × 1,024), (640 × 512) and (320 × 256) IR pixels available
-
Long life Stirling cooler for continuous operation
-
Filter/aperture wheel: motorized; remotely controllable with up to 5 positions each (optional)
-
Modular structure for individual add-ons
-
Precise and repetitively accurate triggers
-
Integrated trigger- and process interface
-

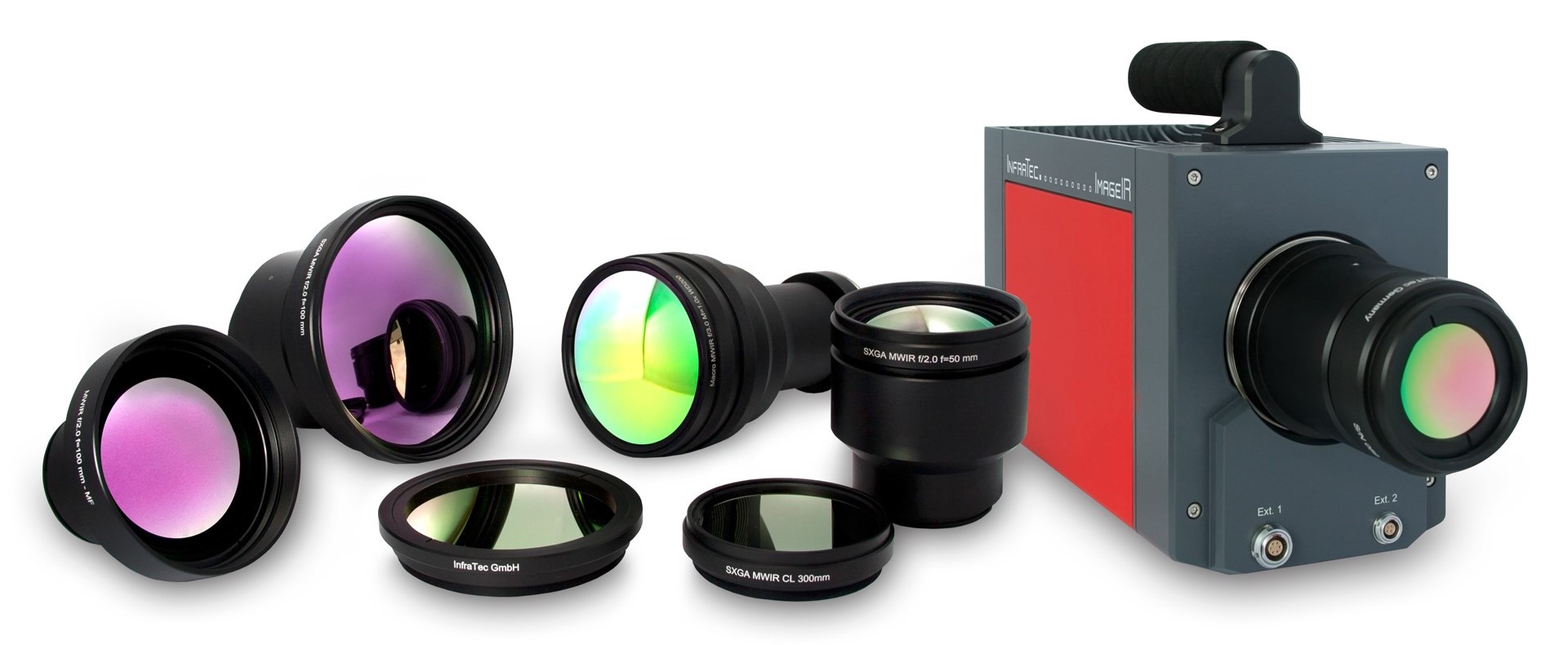

Complete optical assortment, from 200 mm telephoto lens to 8 times microscopy lens with 2 µm pixel size
