The Optris PI series - the Precision Line

The optris® infrared cameras of the PI Precision LIne offer imaging infrared temperature measurement devices for numerous industrial applications. From optris PI450i/PI400i to high resolution VGA cameras (optris PI 640i) and special imagers for metal PI1M as well as glass applications and even microscope images, we meet your every expectation.

Features of the optris PI thermal imagers

Experiencing real-time thermal images with a frame rate of up to 128 Hz, capturing and saving fast measurement results as snap-shots or video sequences or, thanks to the excellent thermal sensitivity, indicating even smallest changes in temperature - to only name a few of the many advantages.

Including optics and cable, the optris PI thermal imaging cameras weigh less than 320 gramms, making them the smalles infrared cameras in the world (dimensions up to 46 mm x 56 mm x 90 mm).

Optris Catalogue

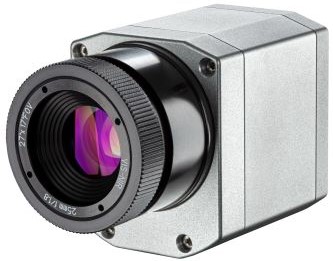

Thermal Camera OPTRIS PI1M

Short wavelength infrared camera optris PI 1M, especially suited for temperature measurements of metals, as these exhibit a distinctly higher emissivity at the short measurement wavelength of 1μm than at measurements in the previously conventional wavelength range of 8-14 μm

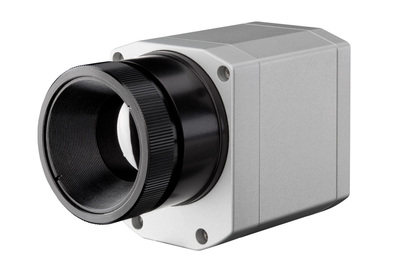

Thermal Camera OPTRIS PI640i

Ideal for industrial and R&D processes, Pin-sharp thermal images and IR videos, Optical resolution of 640x480 pixel

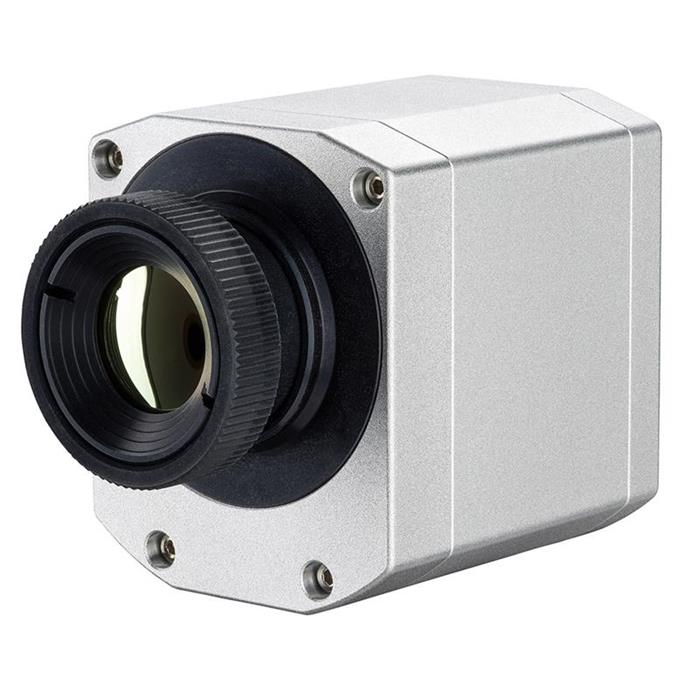

Thermal Cameras OPTRIS PI450i/PI400i

Thermal images with up to 80 Hz, Very high thermal sensitivity with up to 40 mK, Smallest ir camera in its class

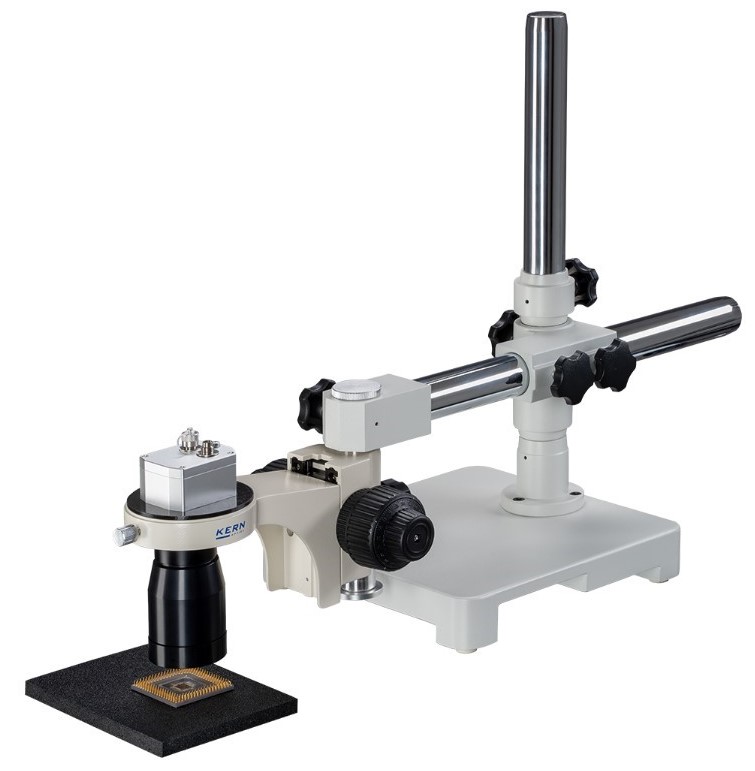

Infrared Camera PI640 Microscope MO2X optics - Resolution down to 8μm

Latest microscope optics development extends themal inspection in detail of circuit boards and IC's down to 8 μm resolution. Distance between camera and object is 15 mm

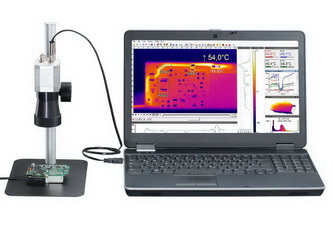

Infrared Camera PI640 Microscope MO44 optics - Resolution up to 28μm

The developed Microscope lenses are especially designed for thermal inspection of electronic boards and analyses of small chip level components down to 28 μm. The distance between the measurement object and the camera can vary between 80 and 100 mm

USB Server Gigabit

Long-distance control of infrared cameras: Acting as USB to Ethernet adapter the USB Server Gigabit 2.0 allows bridging distances significantly longer than 20 meters between the PC and a PI thermal imaging camera or a Xi400 infrared camera and the Optris CTvideo/CSvideo Pyrometers Series

Ιndustrial process interface (PIF)

Integration of thermal imaging cameras in automated processes: newly developed industrial process interface (PIF) permits automatic process monitoring, for the continuous in-operation control of the hardware of the infrared cameras with all cable connections and the free analysis software PIX Connect
