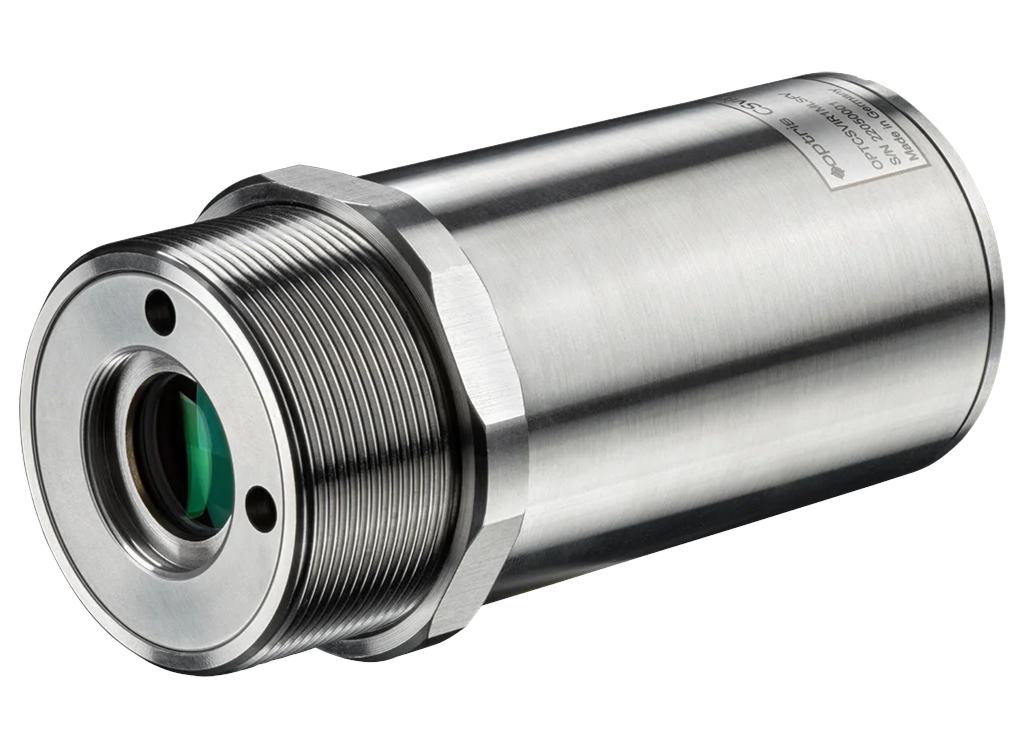

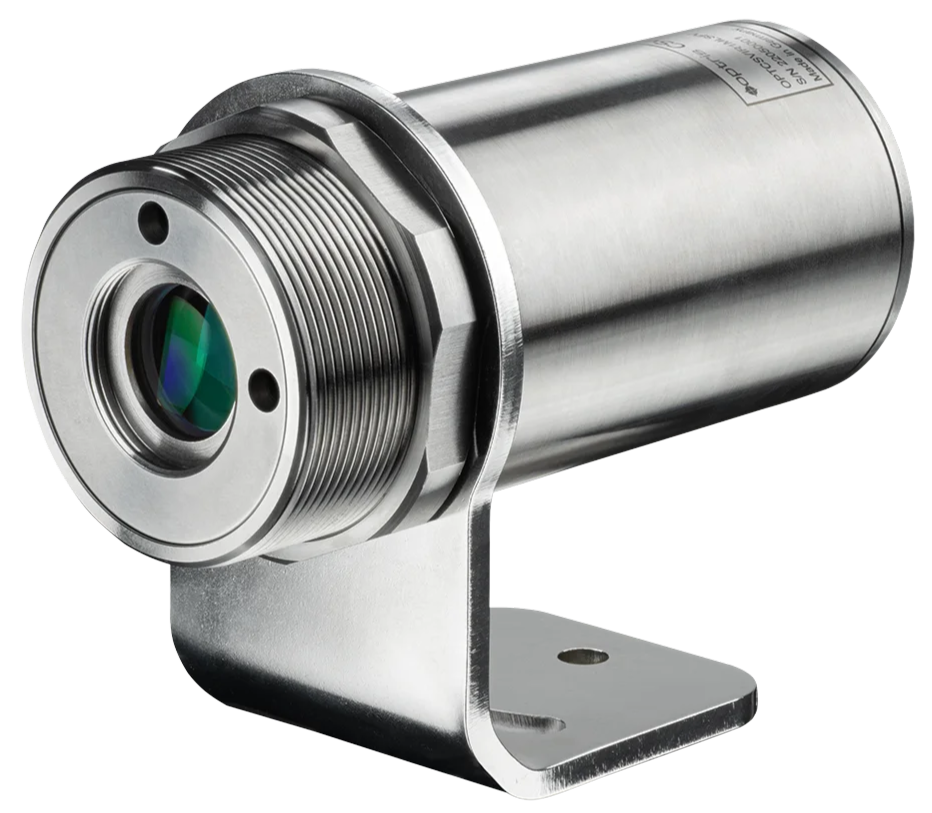

Pyrometer Ratio optris CS Vision R1M, two step BRF, for very high brightness objects

Ratio pyrometer CSvision R1M for non-contact temperature measurement from 550°C to 3000 °C


With the new ratio pyrometers of the CSvision family, it is possible to measure temperatures from 550 °C to 3000 °C reliably from variable distances without contact. The novelty of the CSvision series is the switchable two-step brightness reduction filter, which makes it easy to sight and focus on very bright objects.

The model CSvision R1M measures in a range of 550 °C to 1800 °C (R1ML) or 900 °C to 3000 °C (R1MH), both versions have a motorised focus, with an optical resolution of up to 100:1(R1ML) or 150:1 (R1MH) and operate in the spectral range from 0.8 µm to 1.1 µm.

The ratio pyrometer can be used in adverse environments from 0 °C up to 65 °C without additional cooling. Due to the dual-channel measuring principle, the CSvision are largely insensitive to dust, steam and dirty viewing windows.

Important specifications

  • Temperature range:
    550°C to 3000°C
  • Spectral range: 0.8 - 1.1 µm
  • Response time: 1 ms - 10 s
  • Starting at 2150 €

pyrometer optris CSvision R1M - Datasheet
Metals Industry Application Brochure
pyrometer optris CSvision - Manual
Basic Infrared Theory
