Microscope optics for the inspection of assembled circuit boards

The new microscope optics for the optris Xi 400 infrared camera allows reliable temperature measurement on tiny objects from 240 µm.

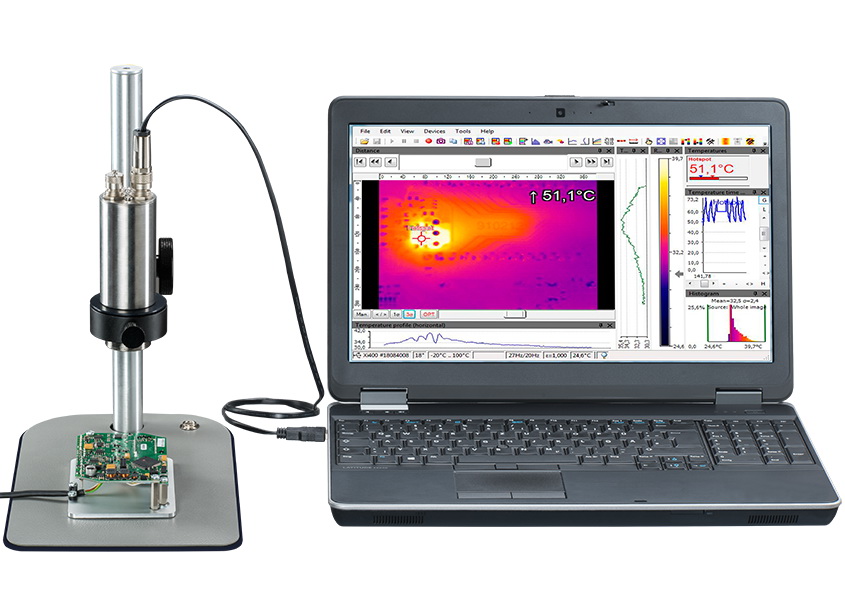

In combination with a suitable stand, this enables professional measurement of printed circuit boards and components in the electronics industry.  The measuring distance between camera and object is variable between 90 and 110 mm. The built-in motor focus allows for an easy focussing of the camera with the included PIX Connect software.

Important specifications

• Analysis of smallest components down to 240 µm
• Easy handling thanks to motor focus
• Recording of radiometric videos
• Optical resolution: 382x288 px
